Euro Shade® Specialty

Manual chain roller shade system

Key Features

• check
• check
  Stainless Steel Bracket – Made in Germany
• check
  Powerful in a slim 3”x3” footprint
• check
  Smooth and effortless operation
• check
  Durable with lifetime warranty
• check
  Easy installation with built-in 1/4” levelling adjustment
• check
  Minimal edge clearance, less than 3/4” light gap
• check
  Guide Wire, Side Channels and Fascia accessories
• check
  Smooth brake system for smaller shades
• check
  Strong brake system for larger shades. Can cover up to 10’x10’ opening
• check
  Universal Mounting: Wall and Ceiling

View Resources

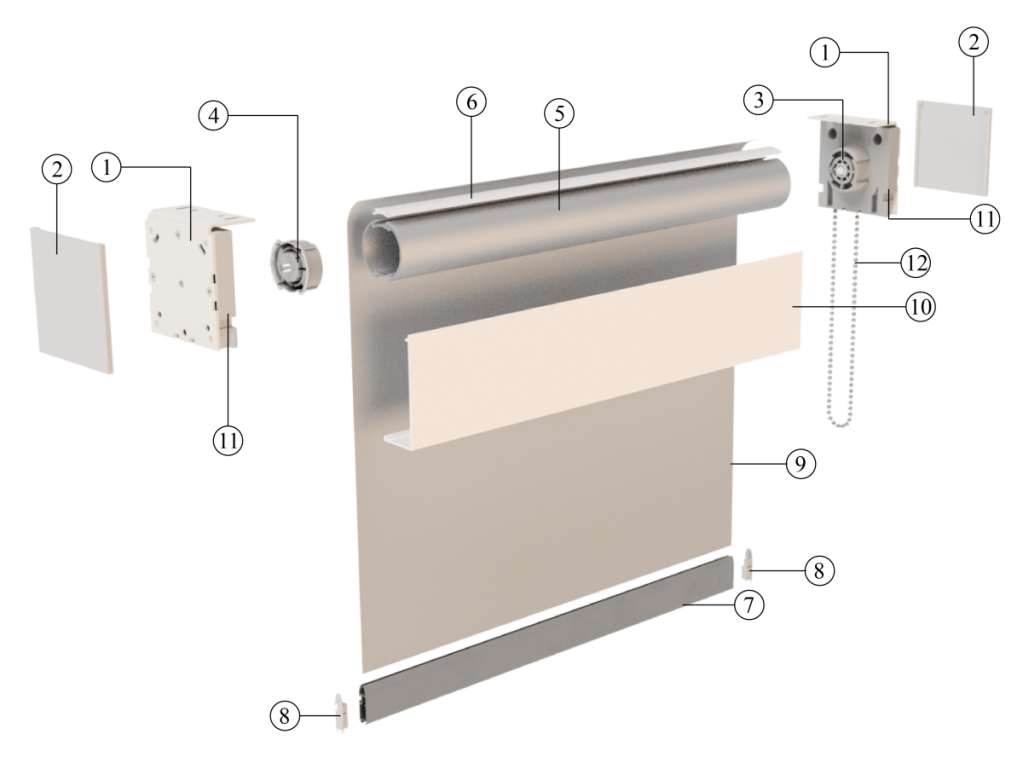

1. 1. Mounting Brackets
2. 2. Bracket end cap
3. 3. Operating clutch
4. 4. End plug
5. 5. Tube
7. 6. Mounting spline
8. 7. Hem bar
9. 8. End cap hem bar
10. 9. Fabric
11. 10. Optional fascia
13. 11. Fascia support
14. 12. Ball chain

Manual chain roller system

Key Features

• check
  Our Salire® 45 roller blind system is manually operated with a chain. Its slide-lock combines heavier holding weights with antifray features that ensure enhanced blind performance. Its Improved chain location allows for quick and easy on-site adjustment while its locking plug inside clutch ensures continued performance of larger shades.
• check
• check
  This roller system is engineered with a specific grooved 5mm aluminum tubing. The selected fabrics are held into the tube with locking tape. Made of glass filled nylon 6, the Salire® 45 side-control units include acetal sprockets, sprockets guard and locking springs. At the opposite end to the control unit, we place a sprung plunger mechanism. The brackets are made of mild steel, acetate, or aluminum to be used for top or face fixing.
• check
• check
  Our Salire® 45 is designed with improved chain location for quick and easy on-site adjustment. The locking plug inside clutch ensures continued performance of larger shades.

View Resources

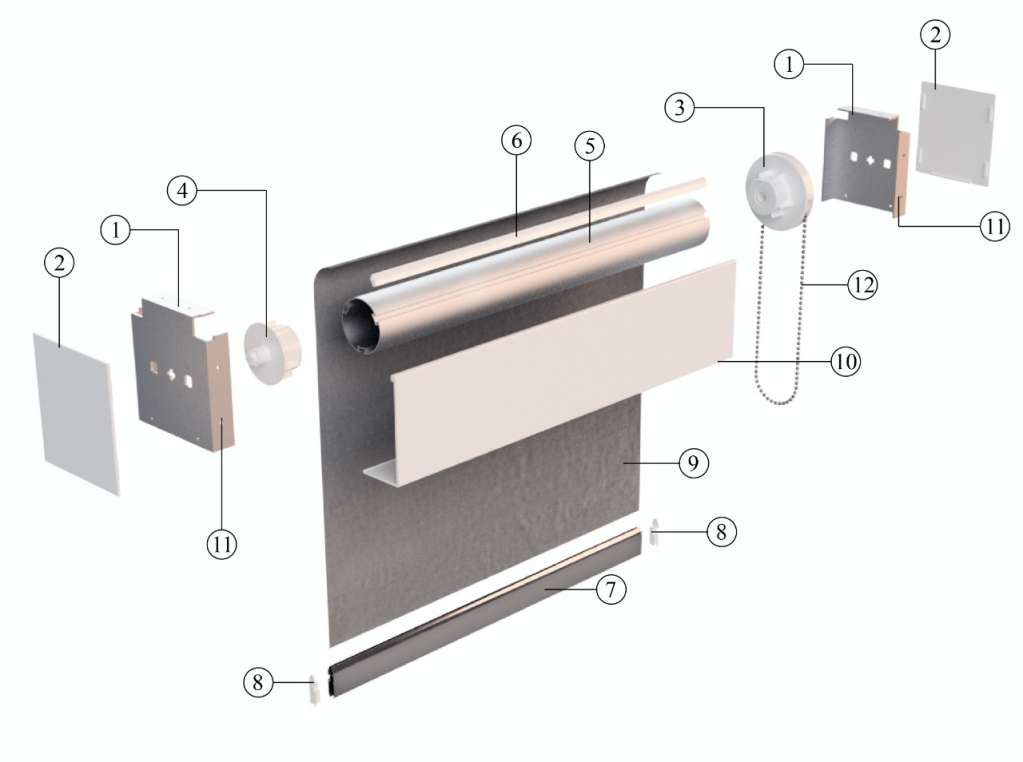

1. 1. Mounting Brackets
2. 2. Bracket end cap
3. 3. Operating clutch
4. 4. End plug
5. 5. Tube
7. 6. Mounting spline
8. 7. Hem bar
9. 8. End cap hem bar
10. 9. Fabric
11. 10. Optional fascia
13. 11. Fascia support
14. 12. Ball chain

Manual chain roller system

Key Features

• check
• check
  4:1 ratio chain mechanism for easy operation on large shades
• check
  Built in auto stop mechanism for upper and lower limit setting
• check
  Robust anti-deflection 1.85 inch diameter tube
• check
  Aesthetic end caps
• check
  Aesthetic aluminum fascia available as option
• check
  Face, top or wall fixing options
• check
  Additional weightening by steel profile is possible (Only with exposed bottom bar)

View Resources

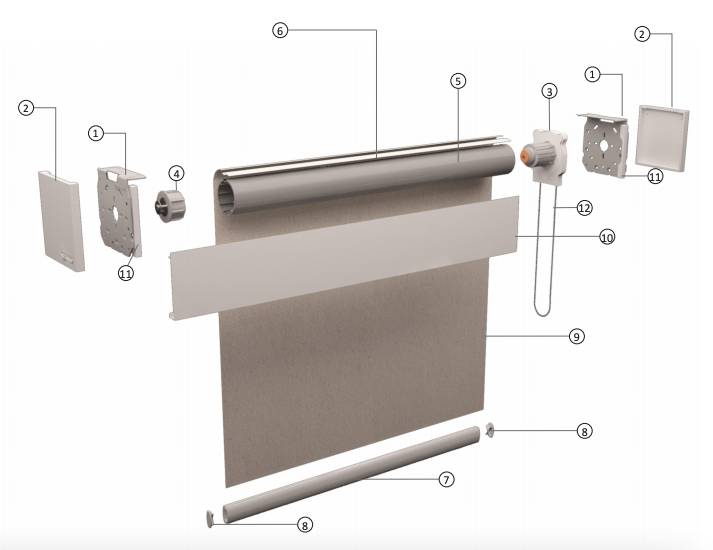

1. 1. Mounting Brackets
2. 2. Bracket end cap
3. 3. Operating clutch
4. 4. End plug
5. 5. Tube
7. 6. Mounting spline
8. 7. Hem bar
9. 8. End cap hem bar
10. 9. Fabric
11. 10. Optional fascia
13. 11. Fascia support
14. 12. Ball chain

Double Shade roller system

Key Features

• check
• check
  4:1 ratio chain mechanism for easy operation on large shades
• check
  Double shade with single bracket system designed to install both sunscreen & blackout shades
• check
  Built in auto stop mechanism for upper and lower limit setting
• check
  Robust anti-deflection 1.85 inch diameter tube
• check
  Aesthetic end caps
• check
  Aesthetic aluminum fascia available as option
• check
  Face, top or wall fixing options
• check
  Additional weightening by steel profile is possible (Only with exposed bottom bar)

View Resources

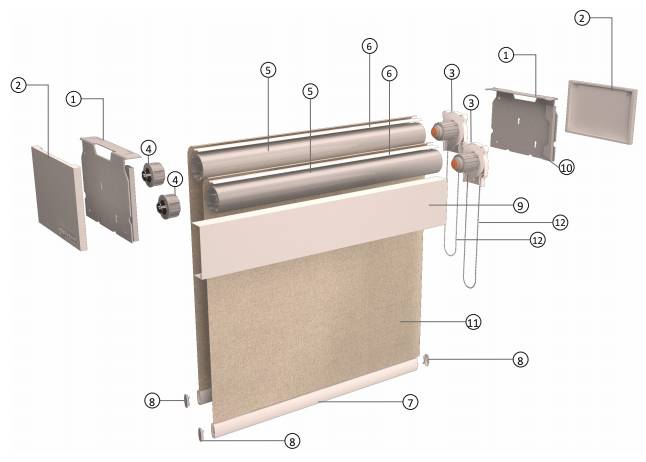

1. 1. Mounting brackets
2. 2. Bracket cover
3. 3. Operating clutch
4. 4. End plug
5. 5. Tube
7. 6. Mounting spline
8. 7. Hem bar
9. 8. End cap hem bar
10. 9. Optional fascia
11. 10. Fascia support
13. 11. Fabric
14. 12. Ball Chain
